Okay, in today's post I continue by showing you how to create a root filesystem by hand, with utilities from busybox (utilities here means the binaries behind commands such as "ls", "cat", ...)

Even a basic root filesystem (rfs) needs around 50 commands.

1. Create the folder structure

First we create the folder structure for linux (the linux folder hierarchy). I talked about these folders in section 5 of part 1 of the BBB-Linux series: [BBB-Linux] 1. Beaglebone Black Boot Process Overview

We create it on the root partition of the SD card

Note: if the mmcblk0p2 partition is not mounted and reports an error, you can fix it with

bash
sudo e2fsck -f /dev/mmcblk0p2

Keep pressing enter and it will be fixed and mountable

We create the main folders

bash
sudo mkdir bin dev etc home lib proc sbin sys tmp usr var && sudo mkdir usr/bin usr/lib usr/sbin var/log

The structure looks like this

bash
zk47@ltu:/media/zk47/rootfs$ tree -d
.
├── bin
├── dev
├── etc
├── home
├── lib
├── proc
├── sbin
├── sys
├── tmp
├── usr
│   ├── bin
│   ├── lib
│   └── sbin
└── var
    └── log

15 directories

2. Use busybox to create the needed binaries

First we clone the busybox source code and checkout a stable release

bash
git clone git://busybox.net/busybox.git
cd busybox
git checkout 1_35_0

Again we export the toolchain built in part 1 to the path

bash
make distclean
export PATH=$HOME/x-tools/arm-training-linux-uclibcgnueabihf/bin:$PATH

export ARCH=arm
export CROSS_COMPILE=arm-training-linux-uclibcgnueabihf-

We build the default config for busybox

bash
make defconfig

Okay, now we configure menuconfig so that after compiling, busybox make install goes to the root partition on our SD card

bash
make menuconfig

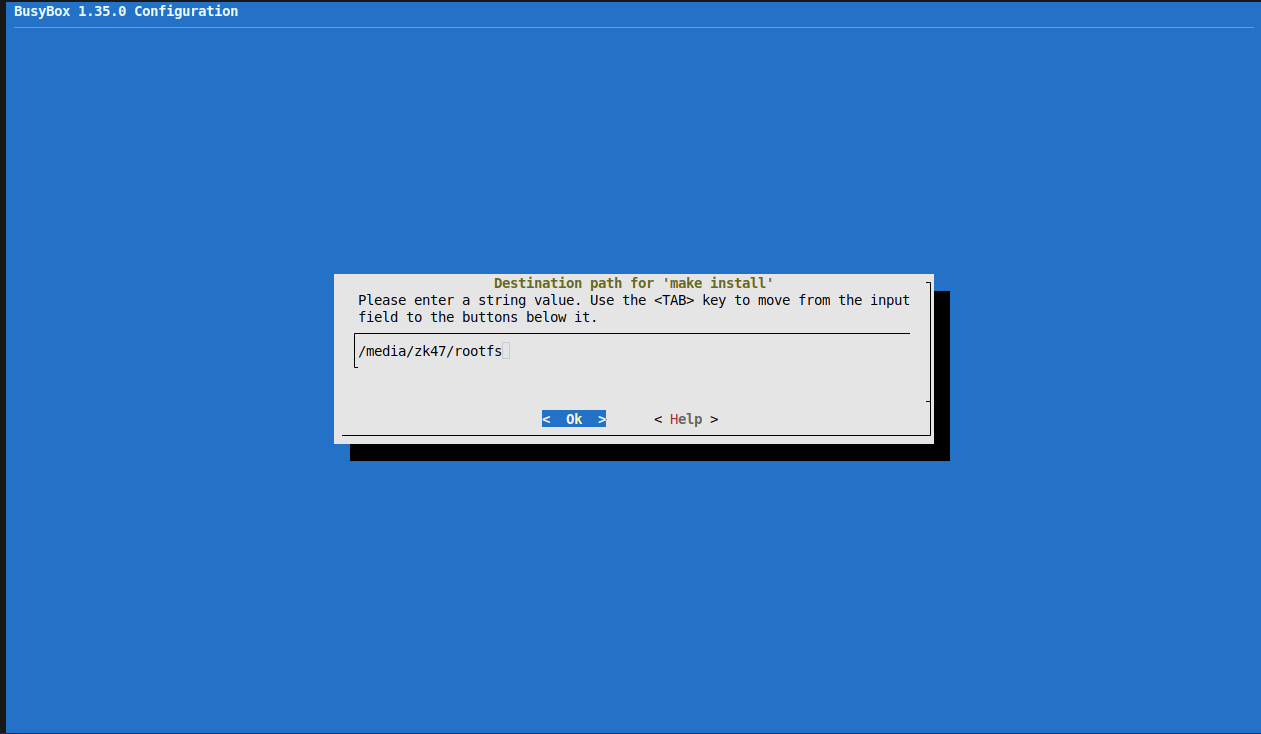

Go to

  • Settings
    • Installation Options
      • Destination path for 'make install'

(Or, a bit simpler, we run make install like this)

bash
make install CONFIG_PREFIX=/media/zk47/rootfs

We also turn off shared libs, so busybox is not built with missing libs

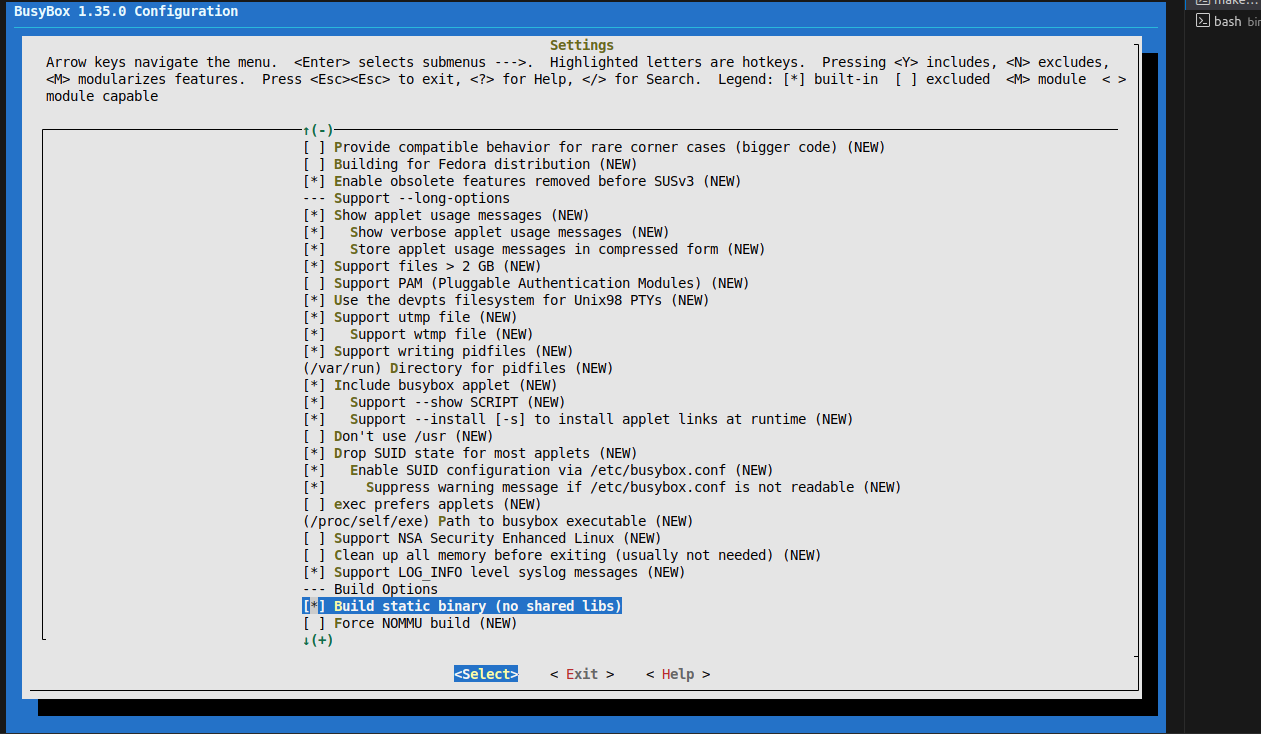

  • Settings
    • Build Options
      • Build static binary (*)

Okay, now we run

bash
make install

At this point I got an error

bash
networking/ping.c:158:11: fatal error: netinet/icmp6.h: No such file or directory
  158 | # include
      |           ^~~~~~~~~~~~~~~~~
compilation terminated.

This is also noted in the bootlin worklab: turn off ipv6 support. We go back into busybox's menuconfig

bash
make menuconfig

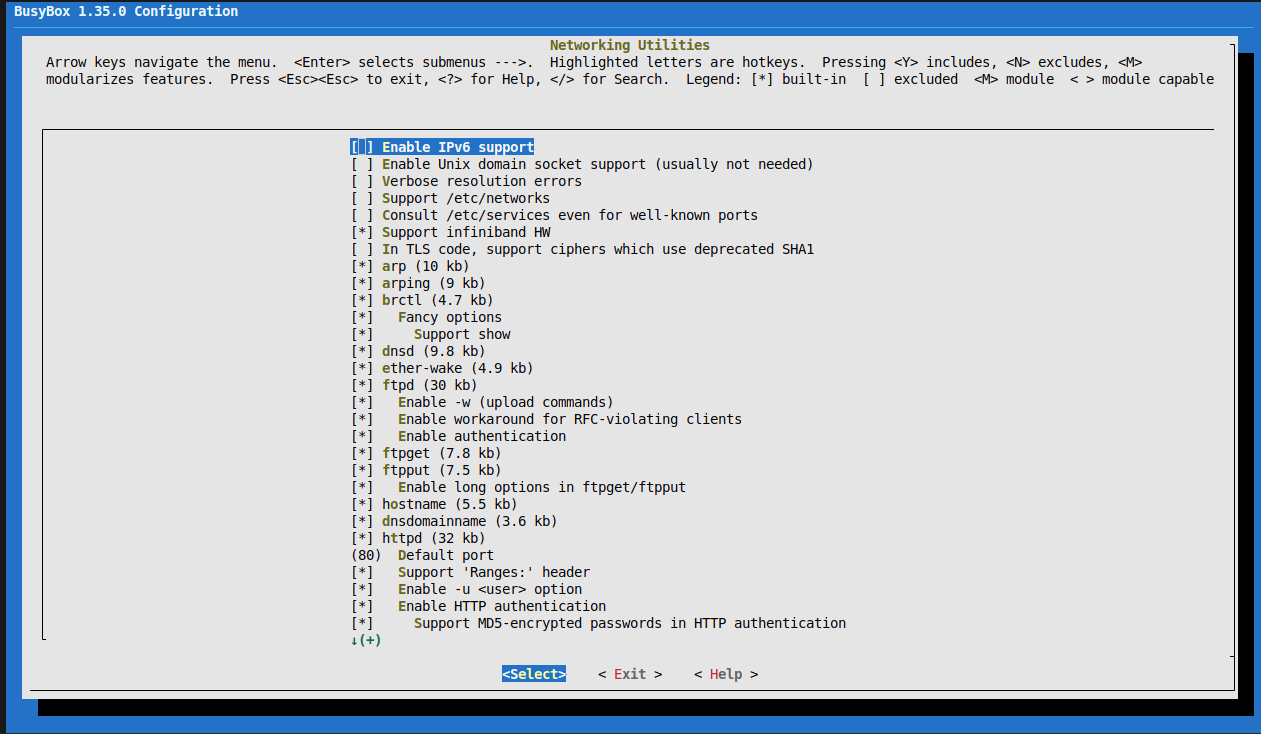

  • Networking Utilities
    • Enable IPv6 support: disable (press space to remove *)

Then run it again

bash
make install

If you get permission denied, don't switch to running with sudo; instead change the ownership of the rootfs partition on the SD card

bash
sudo chown -R $USER:$USER /media/zk47/rootfs

Then run make install again.

If you run sudo, it counts as a new session with sudo rights and we lose the PATH we set above. (That makes busybox build with gcc, not arm-gcc)

3. Result and testing the SD card

Okay, make install succeeded; now if you check the SD card it looks like this

bash
zk47@ltu:~/Learning/Bootlin_practice/busybox$ tree /media/zk47/rootfs/
/media/zk47/rootfs/
├── bin
│   ├── arch -> busybox
│   ├── ash -> busybox
│   ├── base32 -> busybox
│   ├── base64 -> busybox
│   ├── busybox
│   ├── cat -> busybox
│   ├── chattr -> busybox
....

Okay, now power up the board and we see the following

bash
[    3.617786] EXT4-fs (mmcblk0p2): mounted filesystem d756ca9b-1e88-4f98-9c7d-80323ff21984 r/w with ordered data mode. Quota mode: disabled.
[    3.630629] VFS: Mounted root (ext4 filesystem) on device 179:2.
[    3.637275]  mmcblk1: p1
[    3.641359] mmcblk1boot0: mmc1:0001 M62704 2.00 MiB
[    3.650063] devtmpfs: mounted
[    3.654353] mmcblk1boot1: mmc1:0001 M62704 2.00 MiB
[    3.664734] Freeing unused kernel image (initmem) memory: 2048K
[    3.674001] mmcblk1rpmb: mmc1:0001 M62704 512 KiB, chardev (236:0)
[    3.680437] Run /sbin/init as init process
can't run '/etc/init.d/rcS': No such file or directory

Please press Enter to activate this console.
/ # ls
bin         home        lost+found  sys         var
dev         lib         proc        tmp
etc         linuxrc     sbin        usr
/ #

That works nicely

About the /etc/init.d/rcS error: simply put, this is the systemV style of implementation, like a script run at boot. Here, instead of having to press Enter, you can put the following command in that script so it drops into the terminal automatically

bash
exec /bin/sh

Read more at: https://unix.stackexchange.com/questions/56075/why-is-rcs-required-after-file-system-is-mounted-by-the-kernel

Okay, that's it for today :vv

In the next post I will use buildroot to generate this root file system, which is more convenient

Hope you keep reading and supporting
